Download the Lafert NA Catalogue & Price List

View our products and get additional information

2 speed Motors (1 winding or 2 windings) - FB

• 1.0 SF, 230V, 460V or 575V
• Constant Torque, TEFC, Class F, IP55
• Threaded hole output shaft, Squirrel Cage
• IEC – CEI – UNEL MEC – CSA Approved or cURus approved (UL recognized are Class ‘B’)



Brake Motors (2-Speed High Brake Torque - Full Size) - AAFB

• 1.0 SF, Available in 230V or 460V or 575V
• Adjustable brake torque, manual release
• TEFC, squirrel cage, Class F, IP54
• IEC - CEI - UNEL MEC - CSA Approved (UL recognized are Class "B")

Brake Motors (Compact Low Brake Torque) – MS

• 1.15 SF, 208 230/460V or 333/575V
• Brake voltage standard 230V-AC into rectifier with 460V motor, or 333V-AC into rectifier with 575V motor
• Constant brake torque, TEFC, Class F, IP54, Squirrel Cage, S6 70% duty cycle
• IEC - CEI - UNEL MEC - CSA Approved (UL recognized are Class "B")

Brake Motors (Full Size High Brake Torque 230/460V) - AAF

• 1.15 SF, 208 230/460V or 333/575V (please inquire)
• Brake voltage same as motor voltage, adjustable brake torque, manual release lever (on rear of motor)
• TEFC, squirrel cage, Class F, IP54
• IEC - CEI - UNEL MEC - CSA Approved (UL recognized are Class "B")

Brake Motors (Full Size High Brake Torque 575V) - AMBZ

• 1.15 SF, 333/575V
• Brake voltage same as motor voltage
• Available with DC brake coil
• Option for manual release key (at the side of motor)
• TEFC, Class F, IP54, Squirrel Cage, S6 60% duty cycle
• IEC - CEI - UNEL MEC - CuRus - UL recognized are Class "B"



Explosion Proof Motors - MAK

• 230/460V or 333/575V, 50 or 60 Hz
• Threaded hole output shaft is standard, Cast iron construction
• TEFC, Squirrel cage, Class F, IP55, Class ‘B’ rise
• Single phase, Two speed & Brake motor designs available on request
• Flameproof enclosure Ex db IIC T4 Gb ATEX Certification
• No CSA or UL Certification provided
• Thermistors for continuous torque applications – alternate levels of protection available
• Other enclosures available on request
• Frame sizes from 280 to 315, and up to 200 kW are available upon request



High Performance Standalone Permanent Magnet AC Motors (IE4 or IE5) - HPS

• 230V, 400V or 575V
• Standard range covers 0.55 – 30kW and 1800, 3600, 4500RPM
• IEC frame sizes: 56, 71, 90, 112, 132, 160
• “Super Premium” IE4 or "Ultra Premium" IE5 as per IEC TS 60034-30-2:2016
• Frames 71, 90 & 160 Have O/S DE & NDE Bearings and frames 112 & 132 Have O/S DE Bearings & Standard NDE Bearings
• Class F (155°C) insulation, Class B (80°C) thermal rise, TEFC, IP55
• Foot (IM B3) or Metric or NEMA* mounted (IM B5, IM B14*) - feet are removable
• Designed for sensorless control (no encoder required)

/ /

HP Combi Packaged Motor & Drive - HPC

• Optimized for increased system efficiency available up to 50 HP
• Ultra Premium IE5 Efficiency for maximum energy cost savings
• Plug & Play solution fully dimensioned and configured according to customer needs
• Advanced control electronics for easy commissioning, control and service
• IP66 / NEMA 4X outdoor
• Precise speed control

HP Integrated PM Motor & Drive - HPI

• Size & weight savings up to 50% compared to equivalent EISA Premium Efficient Motors
• Includes HP Series motor achieving up to IE5 Ultra-Premium Efficiency
• Design eliminates enclosure requirement or frequency drive
• High performance sensor less AC vector control
• On-board digital analog I/O & communications (Modbus RTU, RS 232, CANopen)
• Optimized for HVACR applications

Premium Efficiency Motors (IE3) - AMPH / LAB

• 1.15 SF, 208 230/460V 9 leads, 333/575V 6 leads (frame sizes 100+ available in 575/990V 6 leads & frame sizes 132+ available in 460/796V)
• Threaded hole output shaft is standard, Squirrel cage, Class F, IP55, IEC - CEI - UNEL MEC
• AMPH = 6:1 CT turn down, cURus approved (UL recognized are class ‘B’), removable feet, CC#:046B
• LAB = 10:1 CT turn down (CSA energy verified), cast based/ non-removable feet (ExNa, compliant with EISA regulations & are NRCAN approved)


Single Phase Motors (Dual Voltage) - DVE

• 1.0 SF, 115/230V - TEFC
• Squirrel Cage, Class F, IP54, IEC - CEI - UNEL MEC - CSA Approved (UL recognized are Class 'B')
• Designed for high starting torque applications C
• Capacitor start and run, making them suitable for most applications (i.e. gearboxes, pumps, and machine tools)

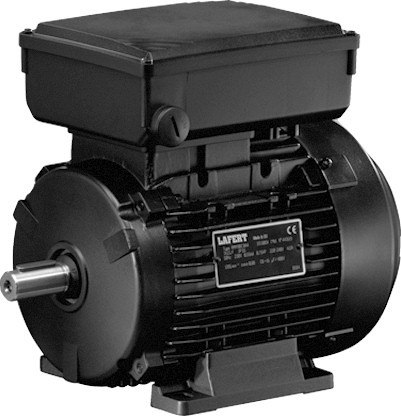

Single Phase Motors - LM/LME


• Service Factor SF, 115V or 230V - TEFC
• Squirrel Cage, Class F, IP54, IEC - CEI - UNEL MEC, CSA Approved (UL recognized are Class "B")

LM Type:
• Designed for no load starting torque applications such as fan duty
• Two windings connected in parallel with a run capacitor connected in series giving the motor considerable overload capacity & high power factor

LME Type:
• Designed for high torque applications
• Features capacitor start and capacitor run making them suitable for most applications (i.e. Gearboxes, pumps, machine tools)

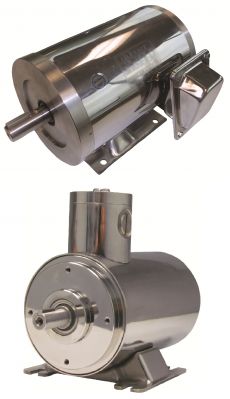

Stainless Steel Design Motors - LA

Ideal for Food Processing, Chemical, Packaging & Pharmaceutical Industries
Sanitary, durable & Corrosion resistant
Foot mounted, B14 or B5 mounting
230/460V or 333/575V, 60 HZ
Laser etched nameplate on frame body


IP56 "Wash Down Protection" (IEC)
•        300 series stainless steel construction on all exterior parts
•        Drain holes at 90° positions
•        Paint free housing
•        Turn down ratio 4:1 CT 10:1 VT
•        2, 4, or 6 pole, from 0.25 HP - 0.75 HP


IP67 "Immersible" (Premium Efficient in 1HP +)
IP69K "Steam Jet Protection" (Premium Efficient in 1HP +)
•        All stainless steel 304 construction (shafts: SS420 steel grade)
•        Equipped with stainless steel cable glands & 1m of 4 core double insulated cable
•        Includes thermistors (150°C)
•        Modular flanges
•        2 & 4 pole, from 0.25 HP - 15 HP (1 HP to 15 HP are Premium Efficient)
•        Turn down ratio 3:1 CT & 10:1 VT





Standard Efficiency Motors - ST/AM

• 1.15 SF, 208 230/460V - 333/575V (frame sizes 100+ available in 575/990V & 132+ available in 460/776V
• TEFC, IP55, Squirrel cage, Threaded hole in output shaft is standard, Class F, IEC - CEI - UNEL MEC
• ST Motors (CSA Approved)
• AM motors (cURus approved) - UL recognized are Class "B"
