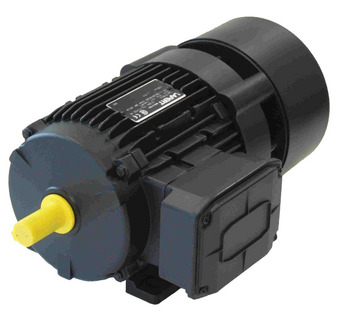

AAF - 2 POLE: 3600 RPM

Items with:
* = Non-removable feet - side mount only
+ = S/L dual set of holes on base (actual frame is 90L)

AAF Base Mount Dimensions (IM B3) AAF Motor Parts Breakdown Full Screen Table

PART NUMBER / FRAME SIZE	HP	RATED CURRENT (460V)	RATED SPEED	RATED TORQUE (Nm)	WEIGHT (lbs)
AAF63C2 *	0.25	0.60	3120	4.9	17
AAF63S2 *	0.35	0.80	3310	4.9	18
AAF63L2 *	0.50	1.2	3265	4.9	19
AAF71C2	0.50	1.0	3300	10.8	29
AAF71S2	0.75	1.5	3380	10.8	30
AAF71L2	1.00	1.9	3320	10.8	32
AAF80C2	1.00	2.0	3410	19.6	43
AAF80S2	1.50	2.7	3400	19.6	45
AAF80L2	2.00	3.4	3400	19.6	47
AAF90SC2 +	2.00	2.9	3410	34.3	57
AAF90SL2 +	2.50	3.4	3420	34.3	59
AAF90LS2 +	3.00	4.4	3420	34.3	64
AAF100LC2	4.00	5.0	3445	54.0	73
AAF100LS2	5.50	6.8	3380	54.0	80
AAF112MC2	5.50	7.1	3430	88.3	112
AAF112MS2	7.50	8.8	3460	88.3	119
AAF132SL2	7.50	9.2	3480	166.8	149
AAF132SC2	10.00	12.8	3450	166.8	162
AAF132MS2	12.50	14.7	3510	166.8	177
AAF132MA2	15.00	18.4	3455	166.8	184
AAF160MC2	15.00	20.0	3530	264.9	275
AAF160MS2	20.00	23.4	3530	264.9	298
AAF160LL2	25.00	31.0	3540	264.9	326

Items with:
* = Non-removable feet - side mount only

AAF Base Mount Dimensions (IM B3) AAF Motor Parts Breakdown Full Screen Table

PART NUMBER / FRAME SIZE	HP	RATED CURRENT (460V)	RATED SPEED	RATED TORQUE (Nm)	WEIGHT (lbs)
AAF63C4 *	0.18	0.50	1630	4.9	18
AAF63S4 *	0.25	0.70	1590	4.9	19
AAF63A4*	0.33	0.80	1630	4.9	20
AAF71C4	0.35	1.0	1600	10.8	26
AAF71S4	0.50	1.3	1650	10.8	28
AAF71L4	0.70	1.6	1680	10.8	30
AAF80C4	0.75	1.7	1680	19.6	38
AAF80S4	1.00	2.3	1690	19.6	41
AAF80L4	1.30	2.6	1660	19.6	43
AAF90SC4	1.50	2.9	1680	34.3	50
AAF90LS4	2.00	3.4	1656	34.3	56
AAF90LL4	2.50	4.1	1680	34.3	60
AAF100LC4	3.00	5.6	1690	54.0	76
AAF100LS4	4.00	6.9	1700	54.0	84
AAF112MS4	5.50	7.9	1720	88.3	118
AAF112M/4	7.50	12.1	1725	88.3	136
AAF132SS4	7.50	11.8	1715	166.8	161
AAF132MA4	10.00	15.5	1730	166.8	184
AAF132ML4	12.50	16.0	1750	166.8	217
AAF160MC4	15.00	19.8	1750	264.9	315
AAF160LS4	20.00	28.7	1750	264.9	344

Items with:
* = Non-removable feet - side mount only
+ = S/L dual set of holes on base (actual frame is 90L)

AAF Base Mount Dimensions (IM B3) AAF Motor Parts Breakdown Full Screen Table

PART NUMBER / FRAME SIZE	HP	RATED CURRENT (460V)	RATED SPEED	RATED TORQUE (Nm)	WEIGHT (lbs)
AAF63C6 *	0.12	0.47	980	4.9	19
AAF71C6	0.25	0.85	1050	10.8	30
AAF71S6	0.35	1.1	1020	10.8	31
AAF80C6	0.50	1.1	1090	19.6	37
AAF80S6	0.75	1.8	1090	19.6	40
AAF90SC6 +	1.00	2.0	1140	34.3	51
AAF90LS6 +	1.50	3.5	1145	34.3	58
AAF100LC6	2.00	4.5	1150	54.0	69
AAF100LS6	2.50	4.7	1150	54.0	76
AAF112MC6	3.00	5.1	1150	88.3	109
AAF112MA6	4.00	5.7	1150	88.3	128
AAF132SC6	4.00	6.5	1150	88.3	150
AAF132MS6	5.50	8.7	1150	88.3	163
AAF132MA6	7.50	11.7	1150	166.8	193
AAF160MC6	10.00	14.5	1150	264.9	309
AAF160LS6	15.00	19.5	1150	264.9	341

Items with:
+ = S/L dual set of holes on base (actual frame is 90L)

AAF Base Mount Dimensions (IM B3) AAF Motor Parts Breakdown Full Screen Table

PART NUMBER / FRAME SIZE	HP	RATED CURRENT (460V)	RATED SPEED	RATED TORQUE (Nm)	WEIGHT (lbs)
AAF71C8	0.20	0.94	760	10.8	28
AAF80C8	0.35	1.2	810	19.6	36
AAF90SC8 +	0.50	1.8	810	34.3	56
AAF90LS8 +	0.75	2.7	810	34.3	62
AAF100LC8	1.00	2.8	820	54.0	69
AAF100LS8	1.50	4.0	830	54.0	80
AAF112MC8	2.00	4.7	830	88.3	119
AAF132SC8	3.00	5.7	850	88.3	163
AAF132MS8	4.00	7.7	860	88.3	182
AAF160MC8	5.50	8.7	860	264.9	266
AAF160MS8	7.50	11.4	860	264.9	290
AAF160LL8	10.00	14.8	850	264.9	306

AAF brake motor flange dimensions Full Screen Table

PART NUMBER / FRAME SIZE	LIST PRICE - In Progress - See 2022 Catalogue for current pricing
FL63B14	$80.00
FL71B14	$80.00
FL80B14	$89.00
FL90B14	$99.00
FL100B14	$148.00
FL112B14	$159.00
FL132B14	$219.00
FL160B14	$416.00

AAF brake motor flange dimensions Full Screen Table
