| ST/AM/AAM

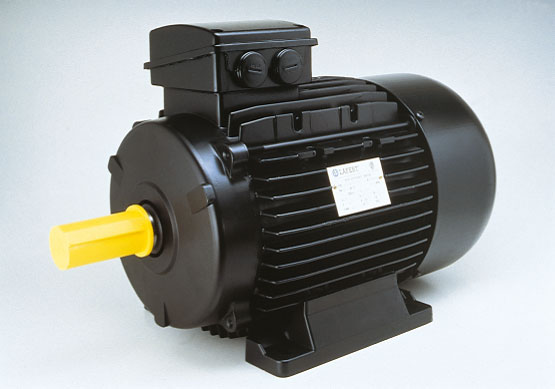

MOTORS Standard Efficiency 3-Phase; 50 or 60HZ; IP55 |
|
ST / AM /AAM motors • 1.15 Service Factor (SF) • Available in 208-230/460V 333/575V • Frame sizes 100 and above available in 575/990V version • Frame sizes 132 and above available in 460/776V version • TEFC • Squirrel cage • Threaded hole in output shaft is standard • Class F • IEC - CEI - UNEL MEC - CSA approved • (UL recognized are class 'B') |
 |
  |

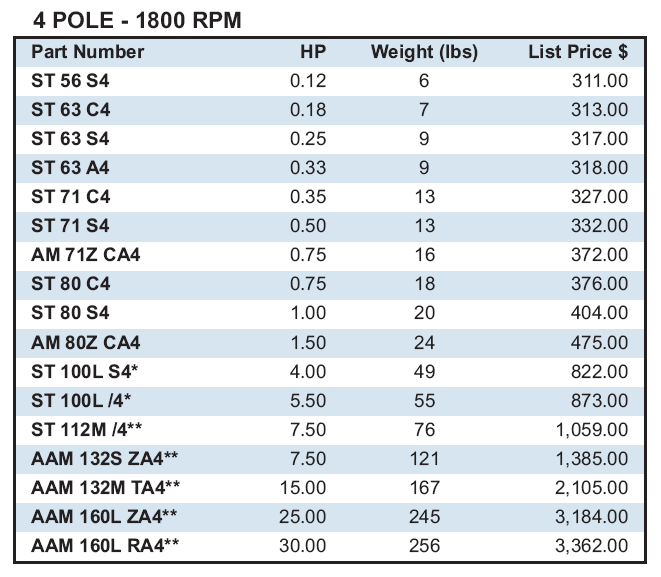

| 2-Pole Motors 6-Pole Motors 8-Pole Motors |
| * Now available 315 frame sizes, please enquire |
| ST Range | HE Range | FB Range | AF Range |
