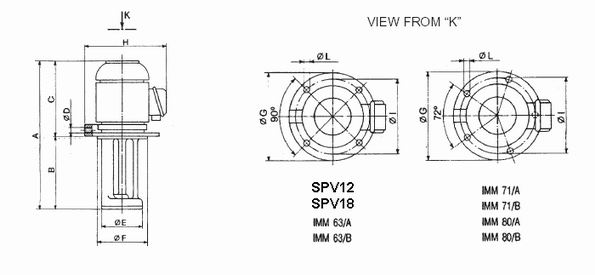

and IMM Pump Types are available with various “A” and “B” dimensions
as shown in Chart 1.

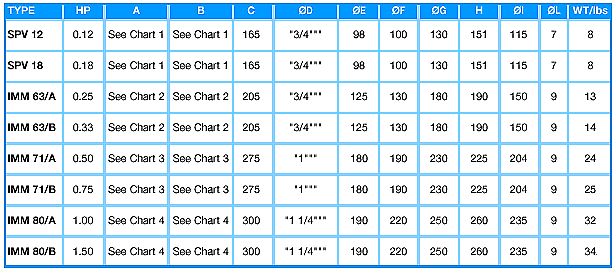

Other dimensions are shown in Chart 2. All dimensions are calculated
in mm unless otherwise indicated.
Type | Self
Priming-Transfer Type | Side
Mounted Type |
